Tech Specs

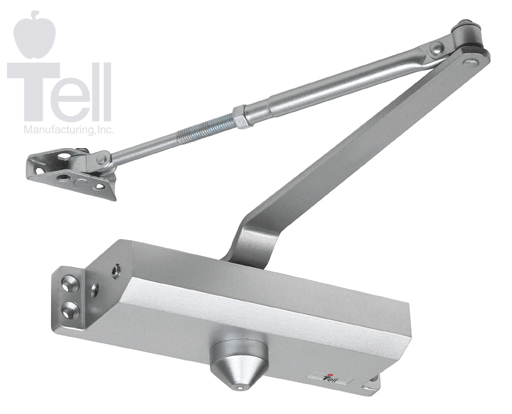

Heavy-Duty Commercial Grade 1 Surface Applied Closers
|
STANDARD FEATURES:
|
|
Performance |
Complies with ANSI A156.4, Grade 1, 2 million cycles, UL/ULC listed up to 3 hours fire rated |
Chassis/Closer |
Cast aluminum |
| Handing | Non-handed |
| Mounting | Tri-Pack — regular, top jamb and parallel arm applications. |
Main Arm |
Forged steel, accommodates reveals up to 3 1/4", adjustable extension arm |
Spring Power |
Adjustable 1 - 4 and 3 - 6 sizes |
Backcheck |
Adjustable, hydraulic - providing cushioning and preventing uncontrolled openings of the door |
Valves |
Adjustable, independent, non-critical (sweep and latch), consistent |
Fasteners |
Metal screws included for hollow metal and aluminum mounting applications. Wood screws included for wood door mounting applications. Thru-bolts optional. |
Door Range |
Up to 180 degrees |
Door Preparation |
9-1/16" horizontal and 3/4" vertical mounting hole locations (retrofits traditional closer) |
| Warranty | 25 year limited |
| OPTIONAL FEATURES: | |
| Covers | High impact plastic and plated kit: cover, arm & bracket. |
| Hold Open Arm | Forged steel with hold open adjustable from 80 to 135 degrees |
Sex Nuts |
For 1-3/8” or 1-3/4” thick doors |
